Quick Details

Condition:New
Applicable Industries:Farms
After Warranty Service:Online support
Video outgoing-inspection:Provided
Marketing Type:New Product 2021
Warranty of core components:1 Year
Core Components:filter screens
Place of Origin:Tianjin, China
Brand Name:DAYU
Usage:Liquid Filter
Type:filter screens
Material:plastic
Hole Shape:Square
Filter Rating:high

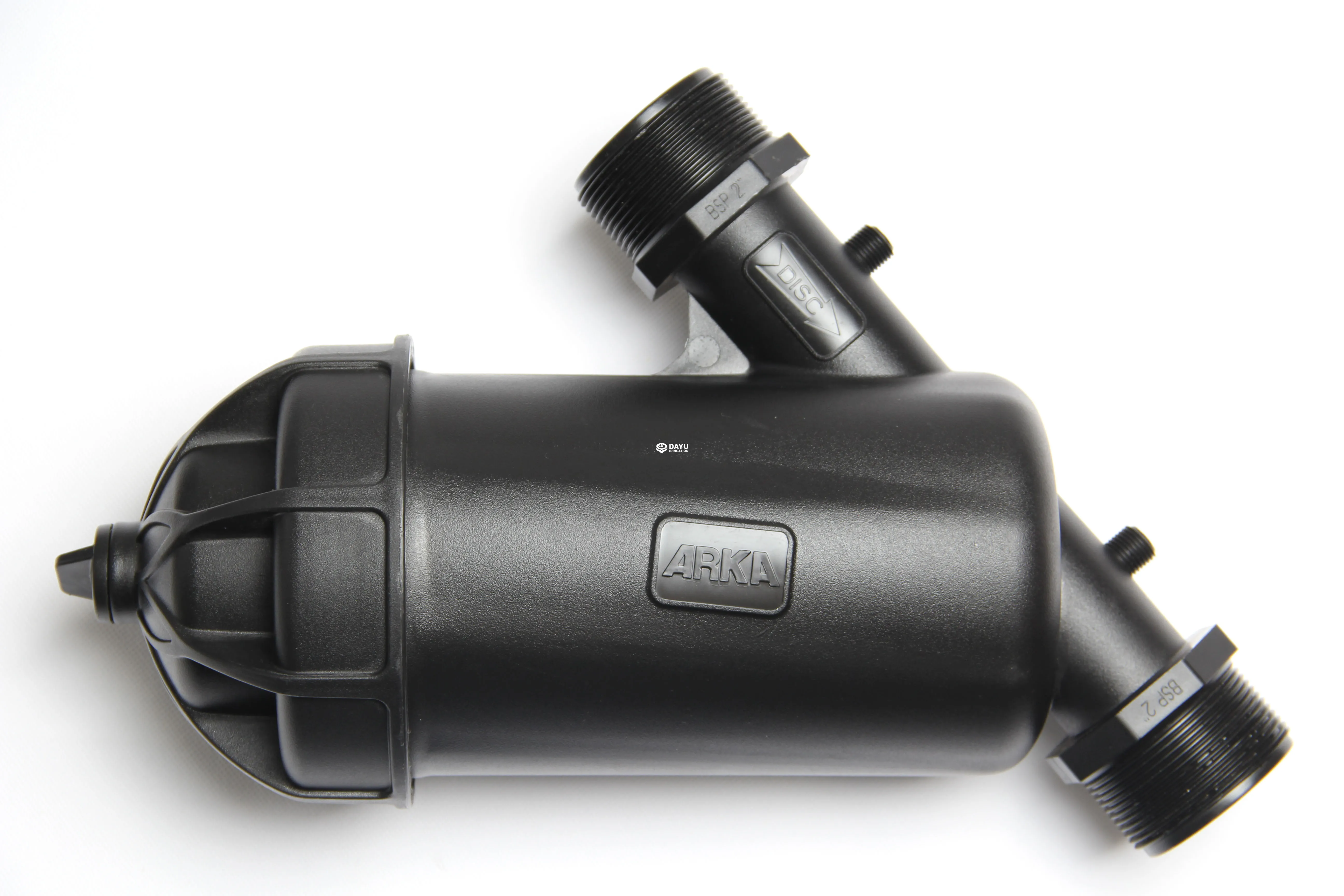

product name:Y type screen filter
Mesh:120
MOQ:1UNITS
Flow rate:5-30(M3/H)
place of origin:Tianjin ,China
feature:Eco friendly
usage:Water-saving Irrigation System
application:agricultural farmland irrigation system
Size:25/32/40/50/63/75(mm)
Working pressure:8 bar

Net filter is the most effective way to deal with inorganic impurities in water. When the water flows through the filter screen, the impurities larger than the mesh number of the filter screen will be intercepted. With the increasing of impurities on the filter screen, the pressure difference between the front and back of the filter screen will become larger and larger. If the pressure difference is too large, the pressure expansion of the mesh will make some impurities squeeze into the filter screen into the irrigation system, and even cause the filter screen to break. Therefore, it is necessary to clean the filter screen Appropriate management measures must be taken to ensure that the pressure difference between the front and back of the filter screen is kept within the allowable range. Only through strict selection and operation under normal conditions can the net filter achieve the purpose of economic and efficient.

Technical Parameters:

The structure shell is made of carbon steel or stainless steel (304, 316L). The filter element is made of stainless steel mesh and nylon mesh. The mesh number is rich, the specification is complete, and the combination is strong. The installation and cleaning are very convenient and free from maintenance.

Quick opening structure, easy to clean and replace filter element.

Filtration accuracy: 80 mesh / 100 mesh / 120 mesh / 150 mesh.

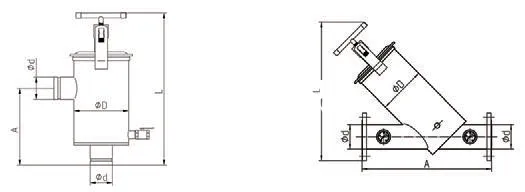

Model: L type and Y type; 2 ", 3", 4 "

Precautions:

1.      When a certain amount of dirt is accumulated on the filter screen, the pressure drop between the inlet and outlet of the filter will increase sharply. When the pressure drop exceeds 0.07MPa, it is necessary to wash it in time.

2.      The water inlet and outlet direction must be selected according to the filtering direction of the filter element, and must not be reversed.

3.      If the filter element and sealing ring are found damaged, they must be replaced in time, otherwise they will lose the filtering effect on water.

4.      When not in use in winter, drain the water to prevent freezing.

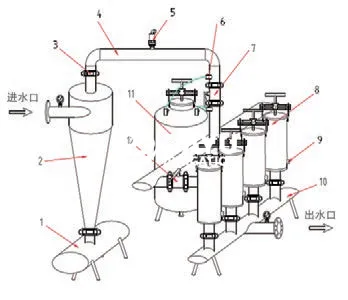

Centrifugal combined filter system

Centrifugal combined filtration system is a series of products for the first water quality filtration of drip irrigation. It is mainly used for two-stage filtration of well water and separation of sand particles in well water.

In order to ensure the normal operation of the whole drip irrigation system,

Each set of filter can be equipped with a fertilizer injection pump, a fertilizer tank, a fertilizer applicator, etc., which can complete the fertilization work in the irrigation process.

1.Sand storage tank        2. Swirling fluid

3.Grooved clamp          4. Connecting pipe

5.Exhaust valve            6. Hose connector

7.Grooved butterfly valve   8. Screen filter

9.Sewage interface        10.Outlet pipe

11.Fertilizer pot           12.Grooved clamp
